Precision Engineering • OEM-Level Rebuild • Performance Optimization

Reliable blown film production depends on dies and die plates running at exact tolerances. Heat imbalance, contamination, wear, and flow restriction reduce output and film quality. Industrial Maintenance Rebuilders (IMR) provides complete OEM-grade repair, rebuild, and flow-path optimization for all makes and models of blown film dies and die plate systems.

DIE & PLATE TYPES SERVICED

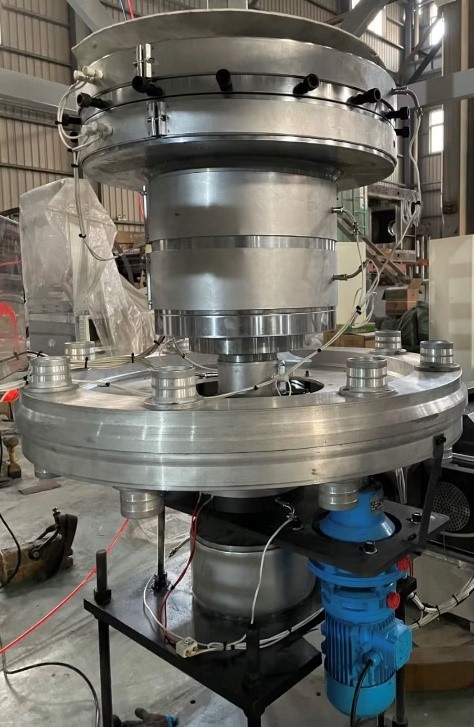

Blown Film Dies

• Single-layer
• 2–9+ layer coextrusion
• Spiral mandrel
• Stacked & modular
• Stationary & rotating
• High-output / high-clarity dies

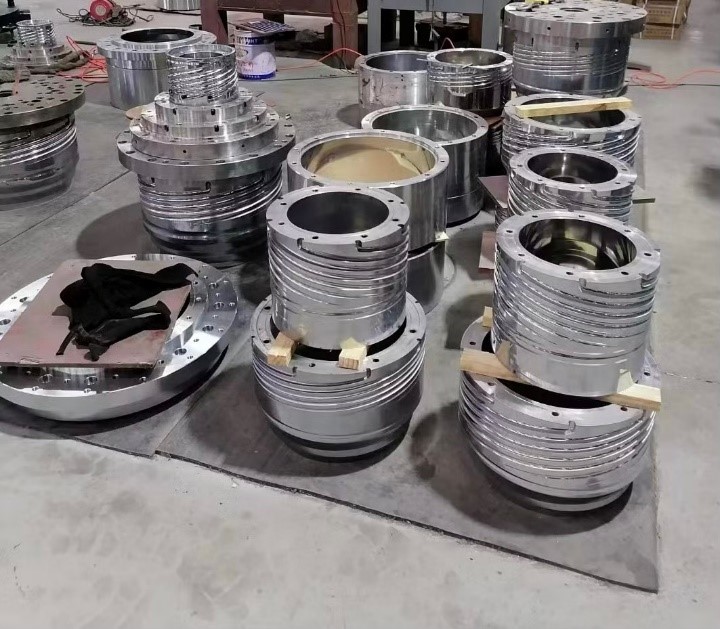

Die Plates

• Flow plates
• Distribution plates
• Mandrel plates
• Face plates
• Die lip plates
• Thermal control plates

CORE REPAIR & RECONDITIONING SERVICES

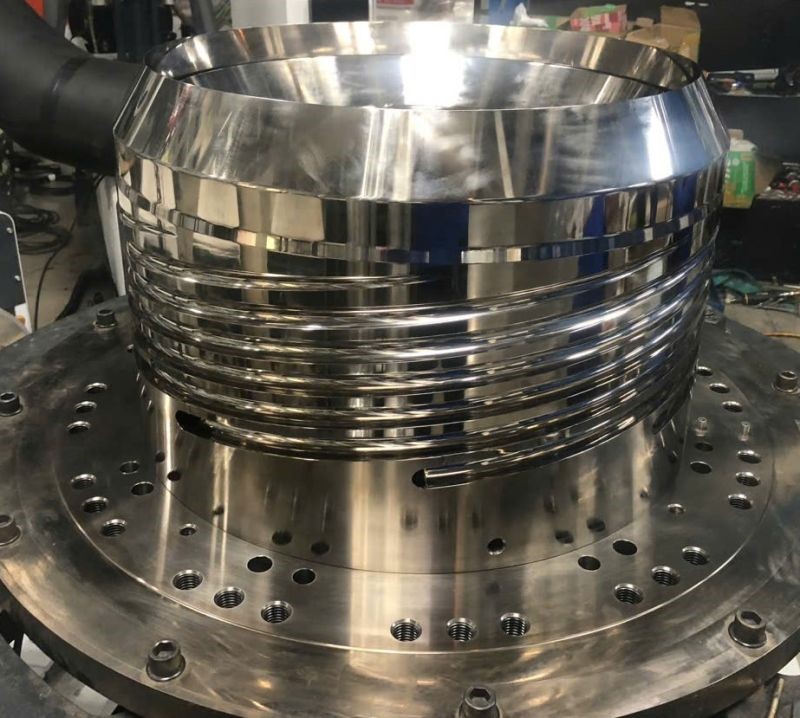

Flow Channel / Mandrel Machining

• Precision machining and polishing of flow paths
• Removal of scoring, erosion, and polymer buildup
• Geometry correction for improved gauge consistency
• Spiral/distribution channel refinishing

Die Plate Reconditioning

• Resurfacing & lapping
• Re-machining flow channels
• Heat distortion correction
• Precision plate-to-plate alignment

Die Lip Rebuild & Gap Calibration

• Lip machining & polishing
• Thermal straightening of warped lips
• Reset to OEM tolerances
• Better bubble stability & film uniformity

Thermal System Overhaul

• Heater-bore machining
• Replacement of heaters & thermocouples
• Heat-zone calibration
• Correction of hot/cold zone imbalance

Severe Damage Rebuild Capability

• Crack repair
• Mandrel rebuild or full re-manufacture
• Broken hardware extraction
• Reverse engineering for discontinued models

PRECISION REBUILD & ADVANCED SURFACE ENGINEERING

1. Standard Industrial Chroming

• Hard chrome finish
• Improved wear resistance
• High-polish surface for clean melt flow
• Cost-effective standard option

2. NICOMO™ 500 Series Advanced Chroming

A premium IMR-engineered coating system.

• Significantly higher hardness than standard chrome
• Superior wear, corrosion & heat resistance
• Ultra-smooth flow surfaces
• Reduces shear, thermal load, and resin hang-up
• Extends rebuild cycles dramatically
• Ideal for high-output and multi-layer blown film dies

WHY IMR

• 20,000 sq ft fully equipped machining facility
• All work performed in-house for maximum speed & quality
• OEM-level tolerances with full inspection reports
• Emergency rush service available
• Free pickup & delivery
• Faster turnaround than OEM lead times
• Proven results: restored to like-new or better-than-new performance

BRANDS WE SERVICE

IMR repairs, rebuilds, and reverse-engineers all major blown film die and plate manufacturers, including:

• Cloeren
• Macro Engineering
• Addex
• Windmöller & Hölscher (W&H)
• Davis-Standard
• Reifenhäuser
• Black Clawson / B.C. Converting
• Kiefel
• Brückner
• Hosokawa Alpine
• Nordson (EDI, BKG, Xaloy)
• SML
• Parkinson Technologies
• Rajoo
• Jinming Machinery
• Kuhne Group
• Elba
